Submersible pump KBFU 50-0,45 M

Submersible pump KBFU 50-0,45 M

Gallery


IBO

Supplier: IBO

Submersible pump KBFU 50-0,45 M



Price without Vat: 268.85 €
Price with VAT: 328.00 €

Stock status: available






Submersible pumps of the KBFU series are intended for professional dewatering works and wherever there is a risk that the pumped water contains sand or sludge. The pumps are used to drain flooded rooms, houses, garages and premises, construction sites. Pumping rainwater and surface water from ponds, lakes and rivers. Mines and quarries.

Characteristics:

  • Suitable for pumping water with sand
  • Float switch
  • Top quality materials
  • Thermal protection built into motor winding
  • The pump bearings are from the Japanese company NSK
  • 24 month warranty
  • Warranty and post-warranty service

Technical data:

  • Maximum liquid temperature: 40°C
  • Maximum ambient temperature: 40°C
  • Power: 230 V
  • Insulation class: F
  • Operating mode: continuous
  • Ingress protection: IP68
  • Power cable length: 10 m
  • Motor speed: 2850 RPM
  • Water pH: 5-9
  • Liquid density: 1,2 x 103 kg/m3

Materials:

  • Motor housing: AISI 304 stainless steel
  • Impeller housing: Gray cast iron
  • Shaft and impeller: AISI 304 stainless steel
  • Impeller: gray cast iron with heavy wear layer / chromium alloy
  • Mechanical seal: Sic-Sic / Carbon-Sic
  • Bearing: NSK

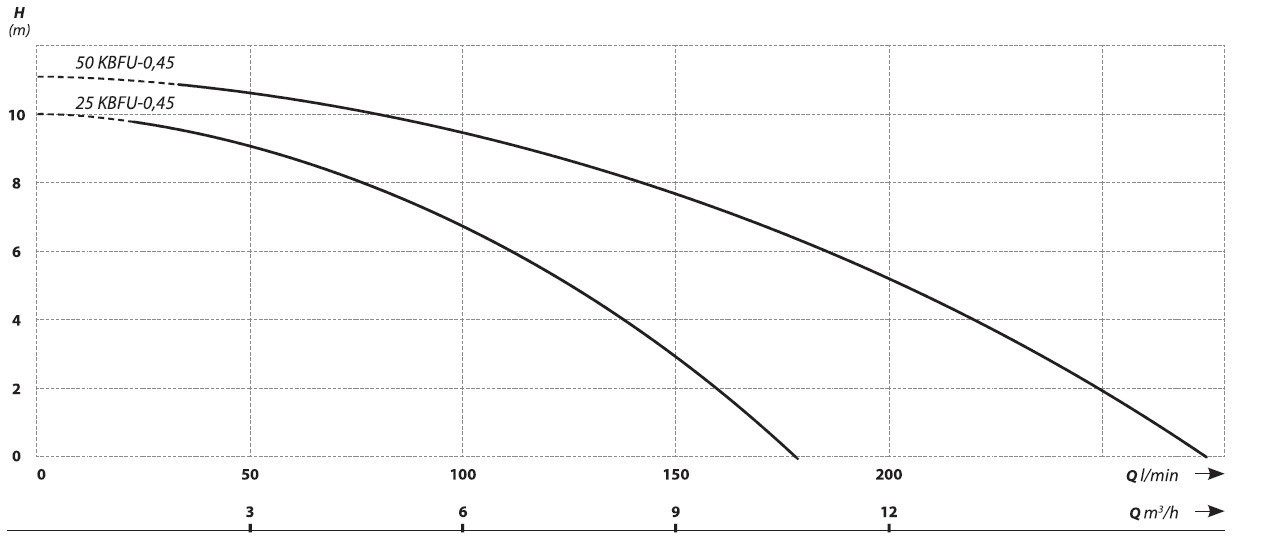

Model Head Flow Motor power Voltage Amperage Inlet/outlet Weight
KBFU 50-045 M 11 m 280 l/min 0,45 kW 230 V 2,3 A 2 inch 12 kg
